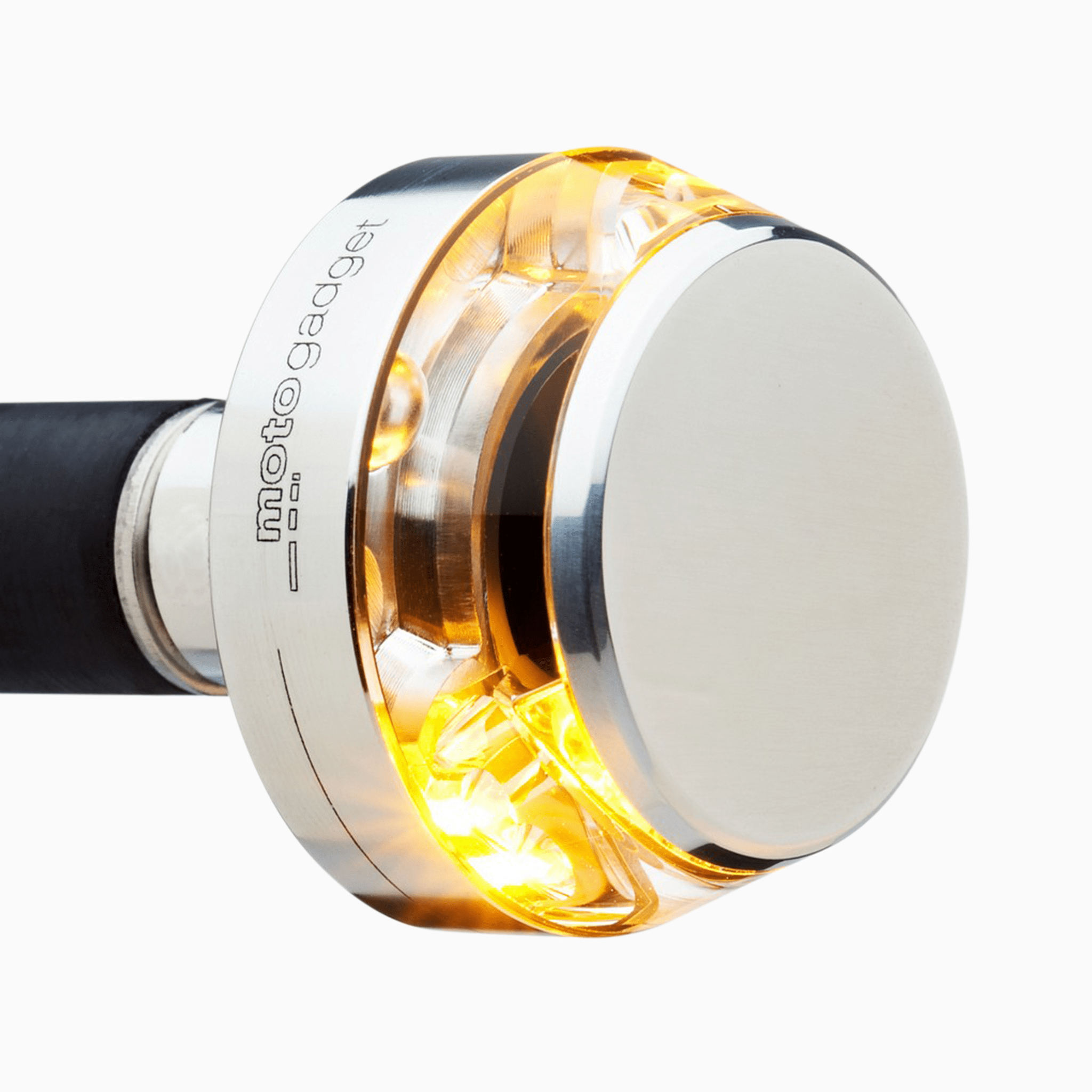

motogadget mo.blaze disc

The mo.blaze disc is the latest generation of turn signal light.

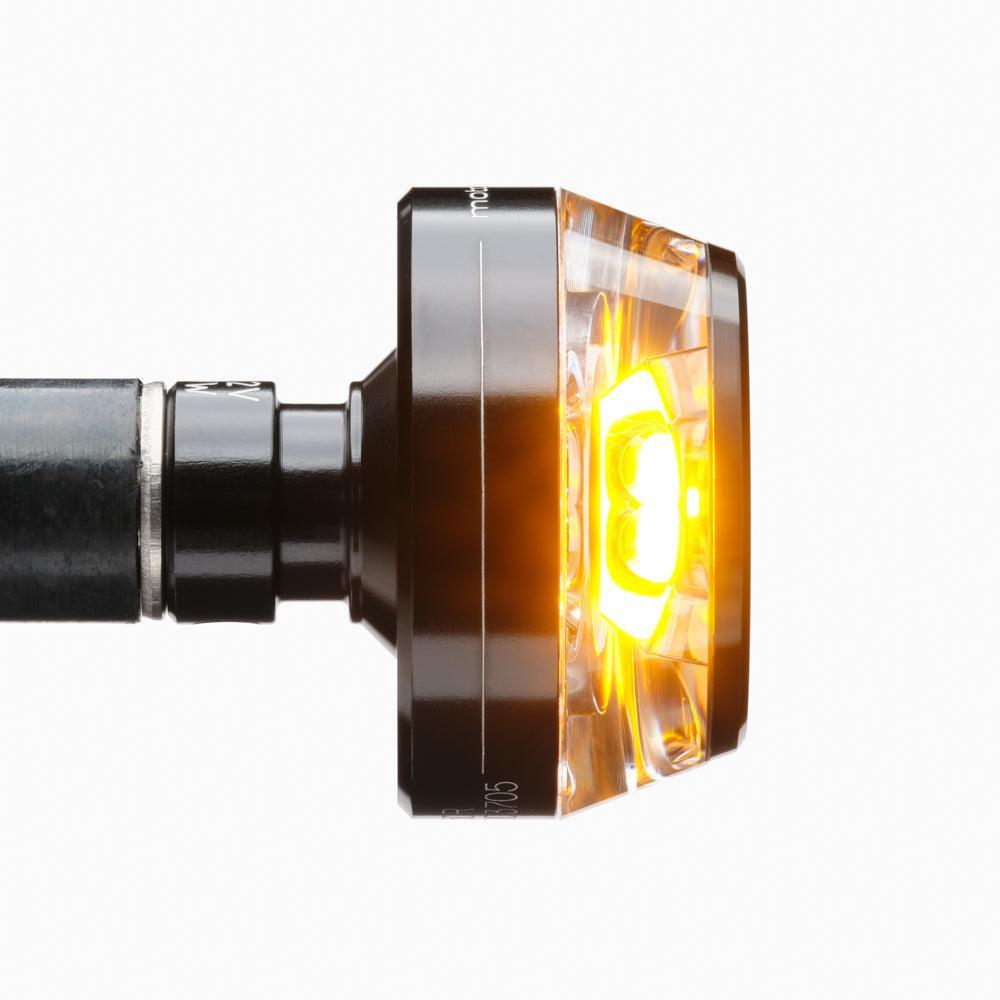

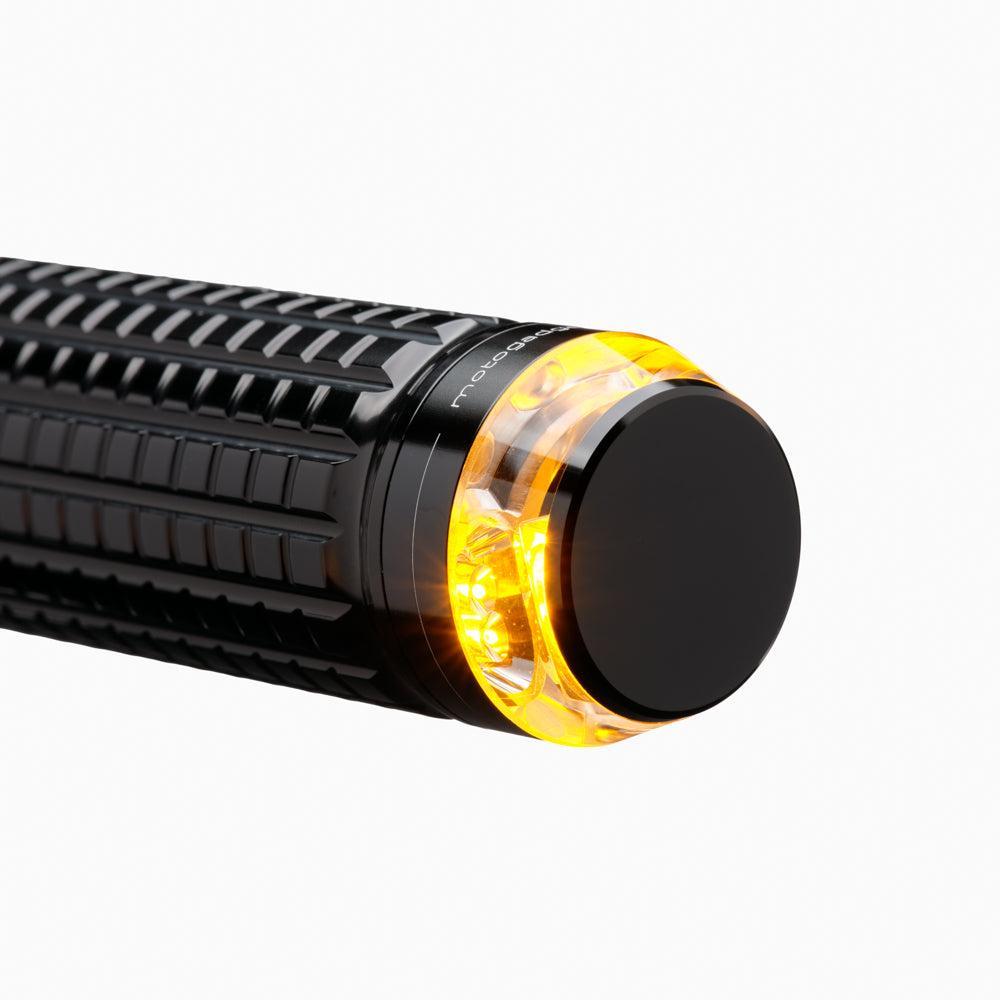

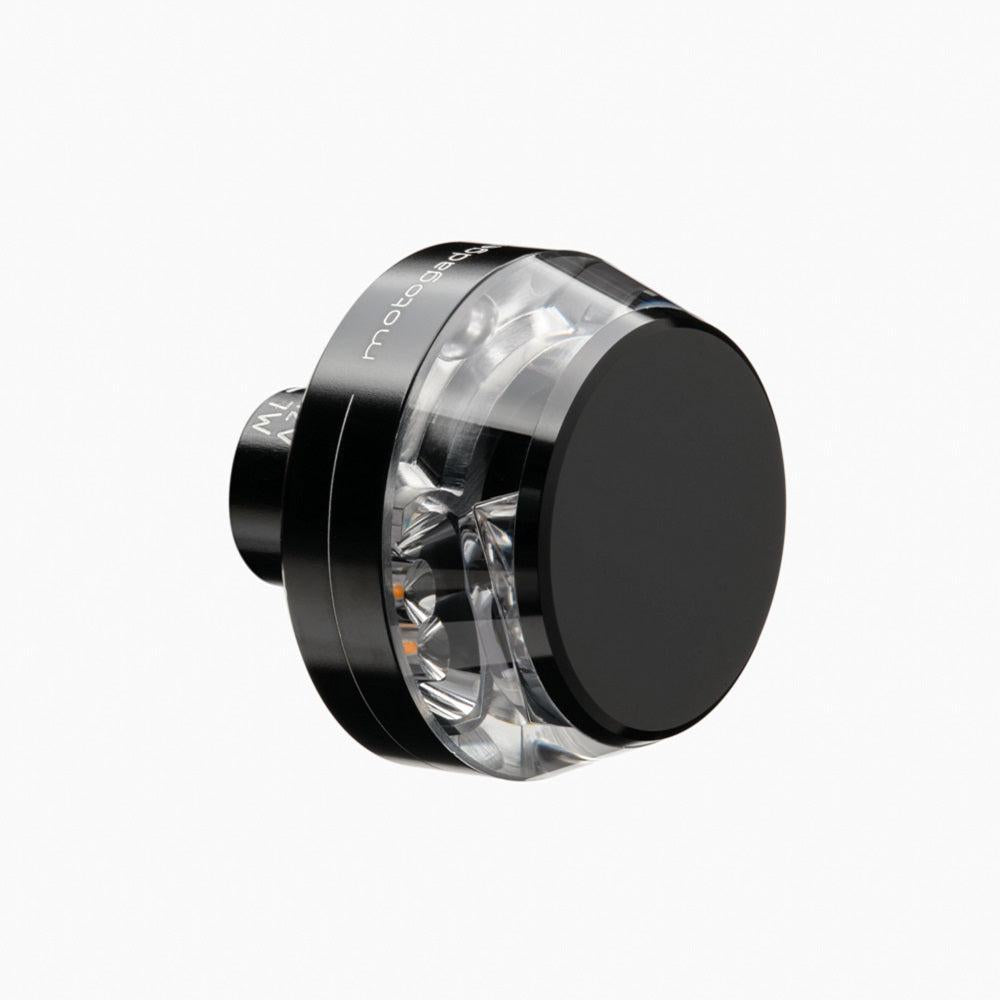

The characteristic feature of the LED blinker is the transparent lens on a compact aluminum base, which harmonizes with the handlebar end grip.

This is our third blinker to use the new TranzLight® Technology (TLT, patent pending). This progressive development approach is not limited to the simple miniaturization of blinker housings, but instead shapes the light directly via a crystal-like plastic body. Only precise optical CAD calculations and state-of-the-art manufacturing processes make this innovative design and its function possible.

The light flow required for the TranzLight® principle is generated by the IntensiLED® process developed by
motogadget's IntensiLED® process and consists of three important components
three important components:

• Selected high-performance LEDs with maximum efficiency and a total output of 7W with a service life of more than 50,000 hours
• an IC-controlled constant current regulation clocked at 330kHz
• a special collimator optic that couples the light from the LED precisely into the plastic body

The discreet aluminum housing is only used for the stable attachment of the glass body and the integration of control electronics and high-end LEDs. It goes without saying that the housing is CNC-machined, black anodized or
high-gloss polished and finely laser-marked.

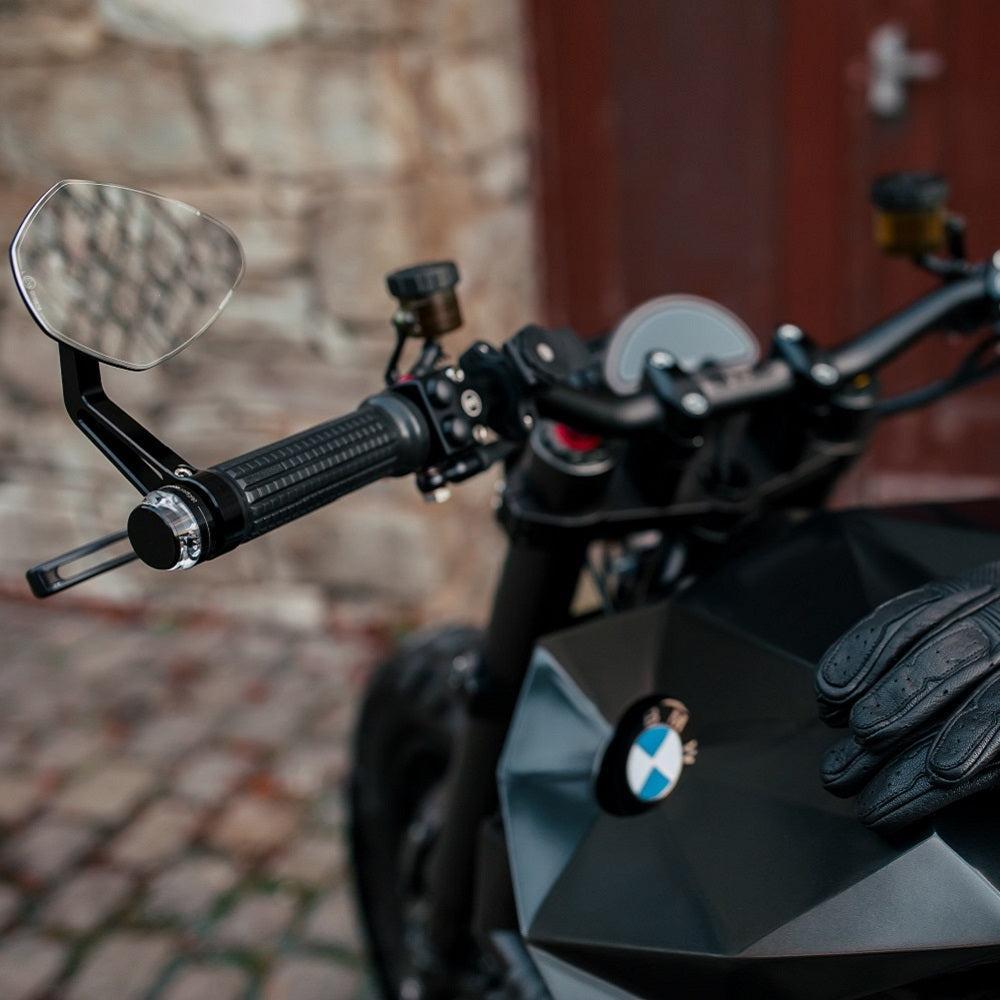

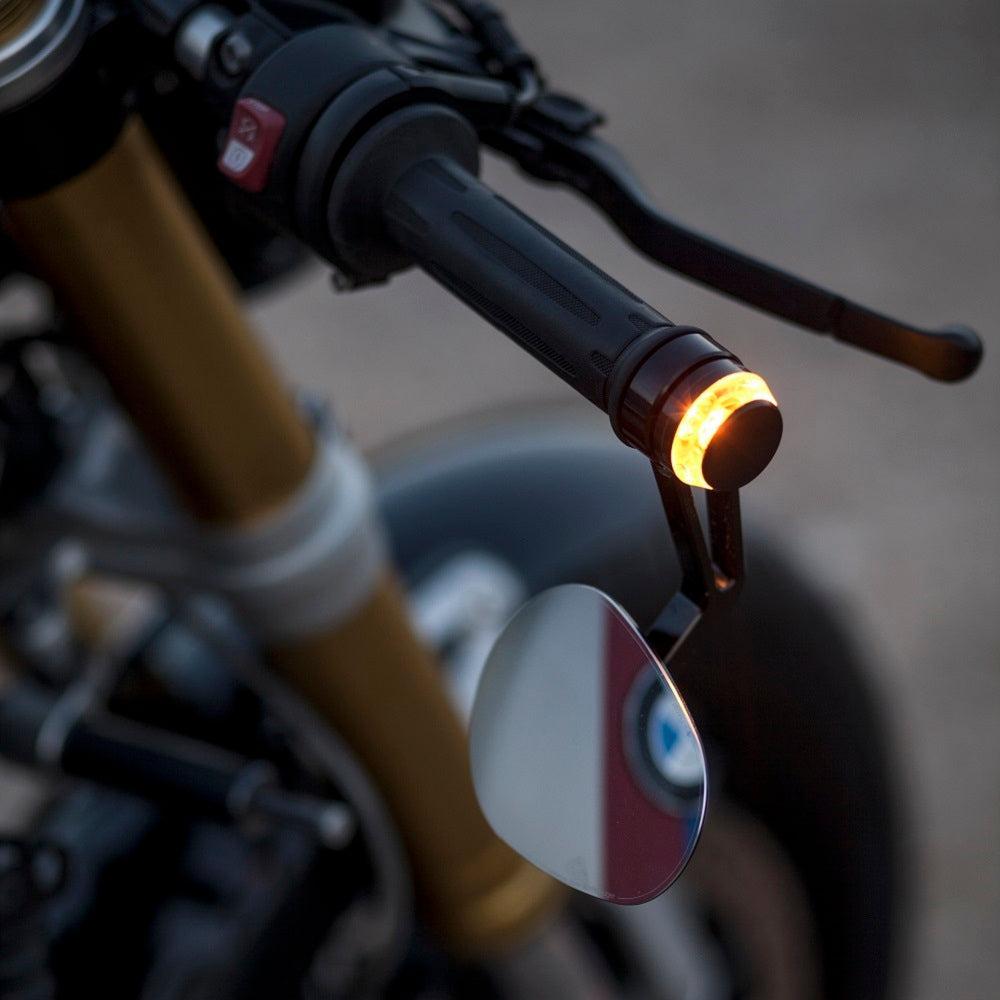

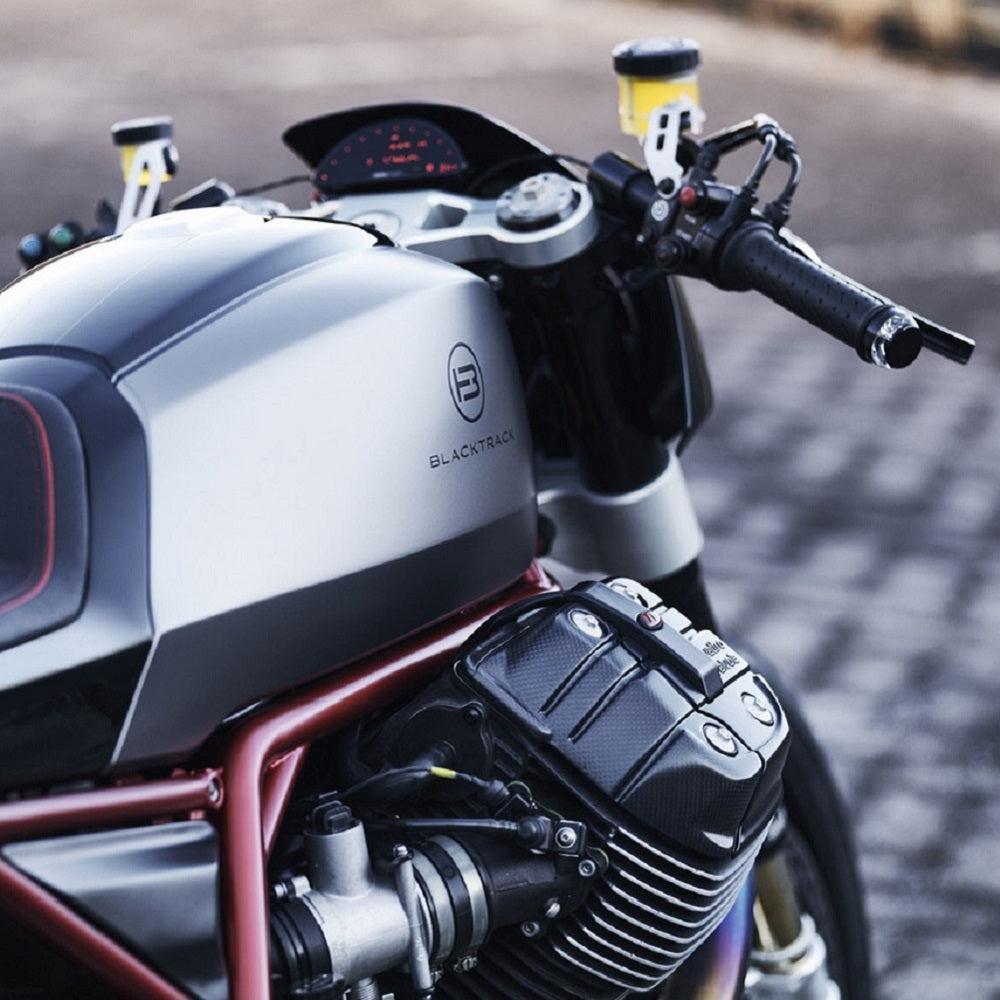

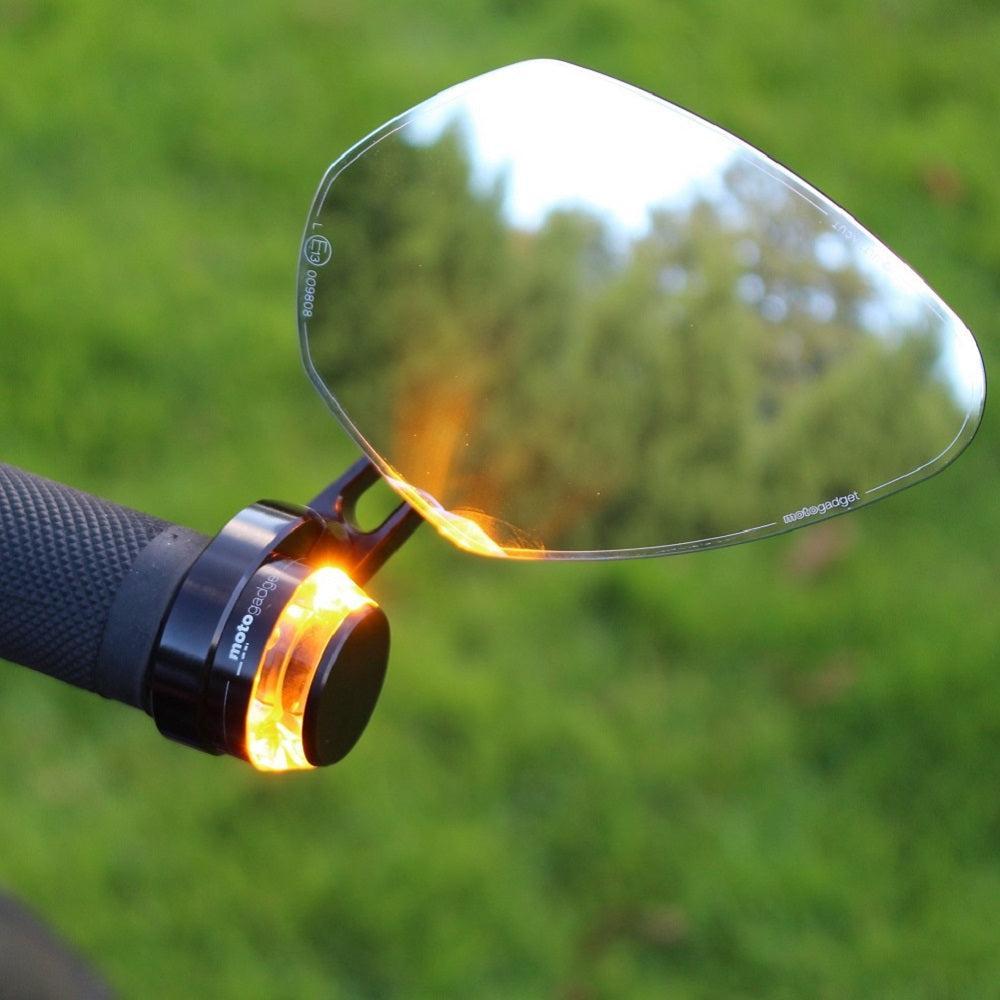

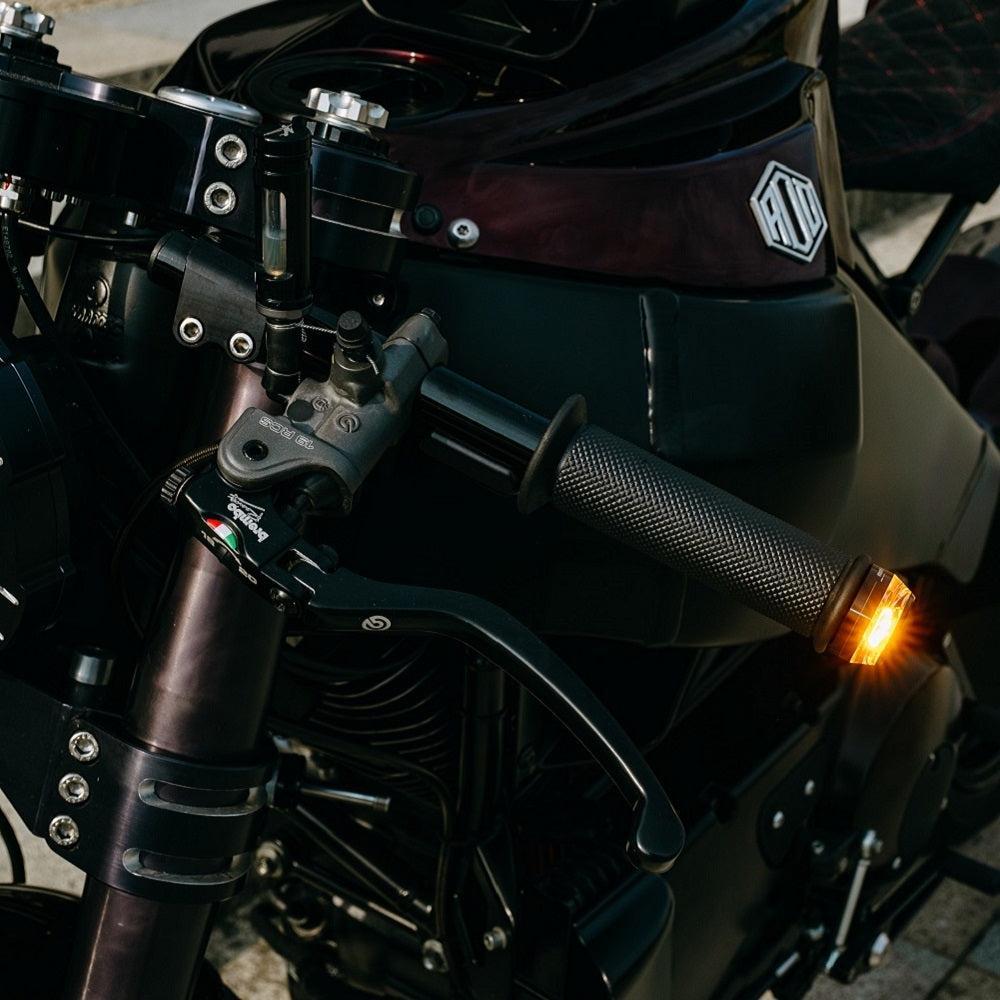

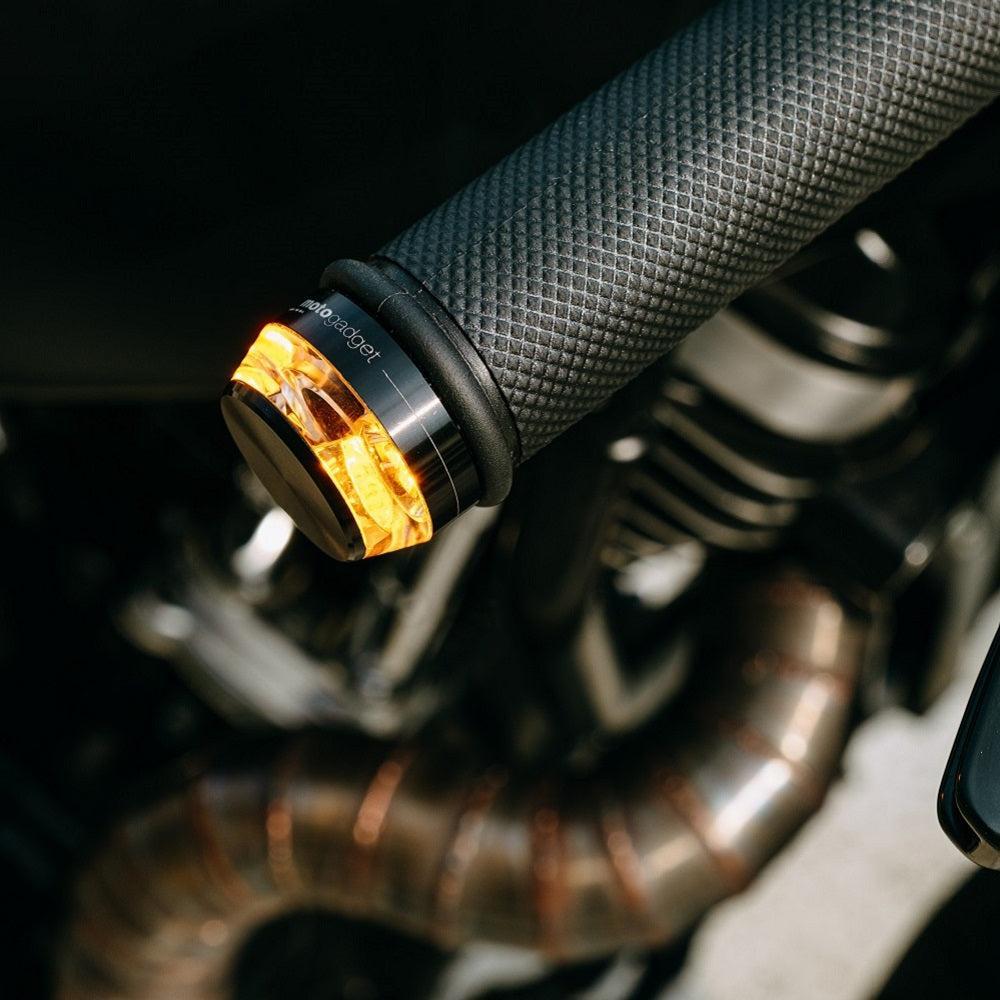

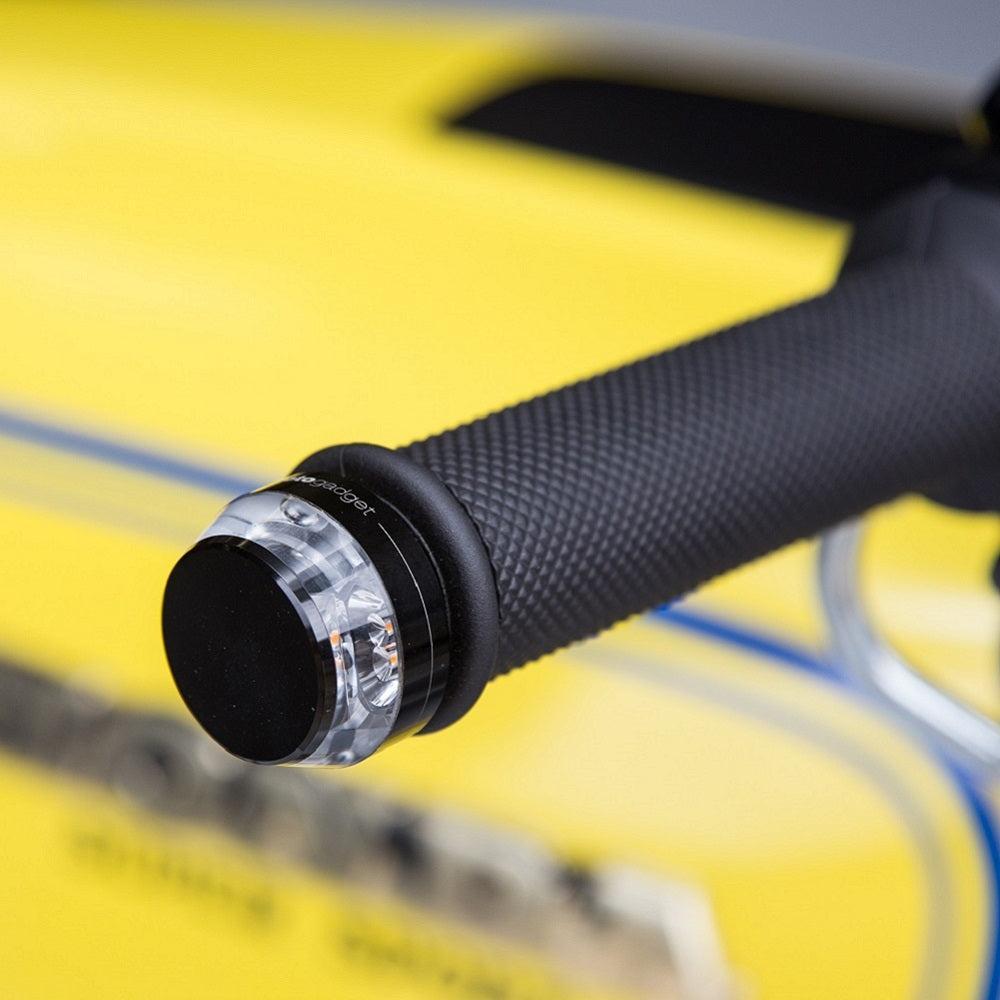

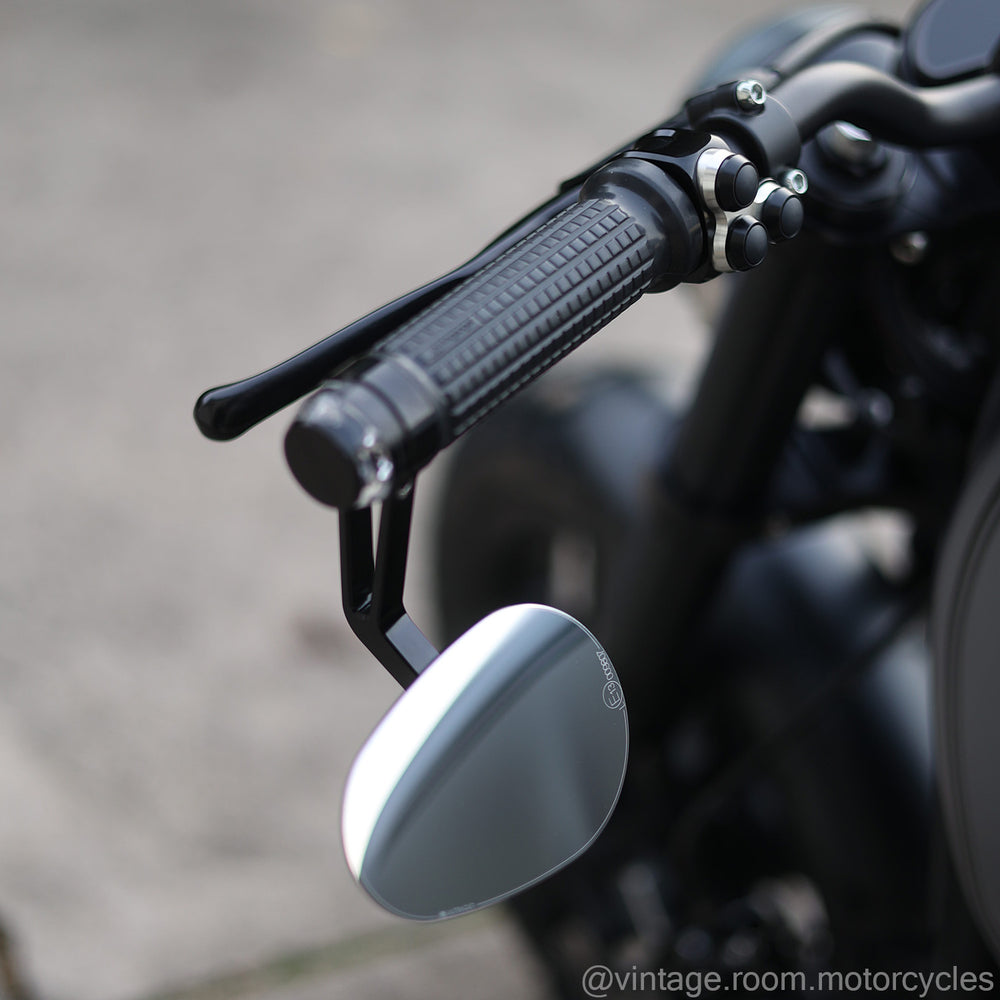

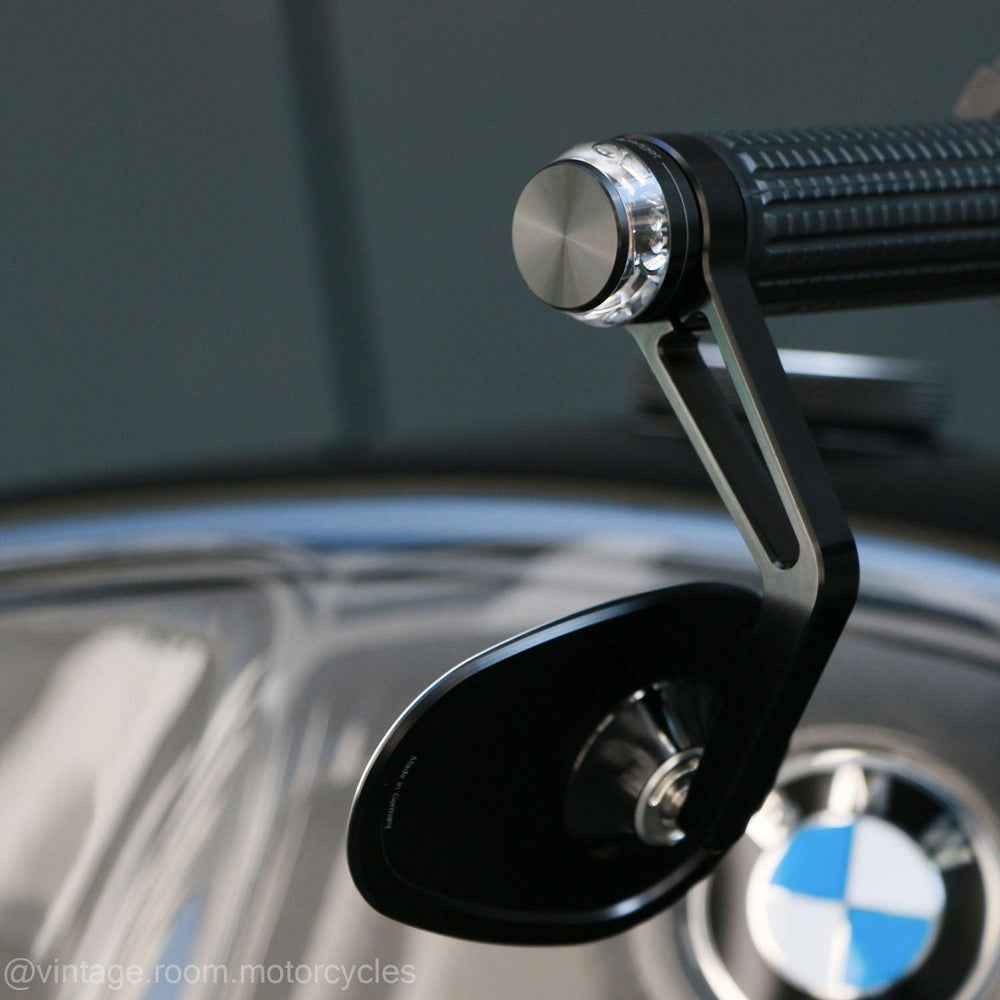

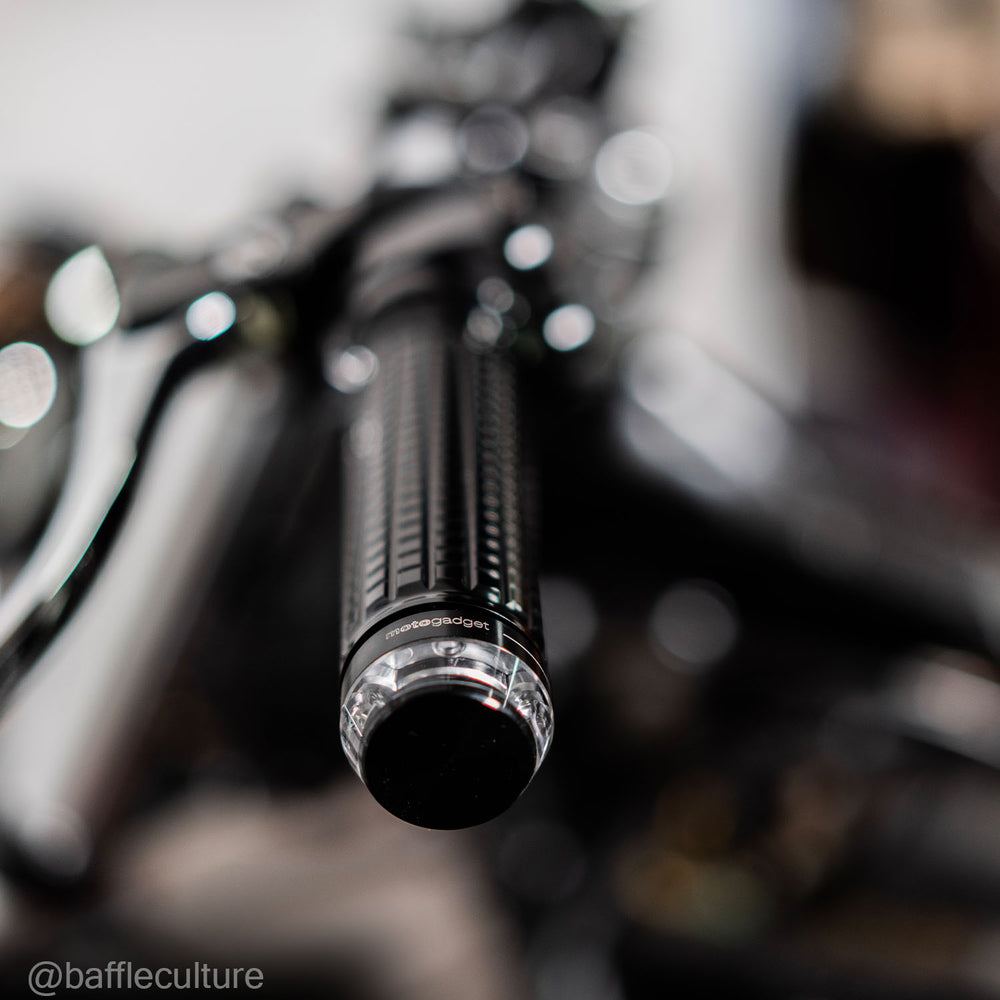

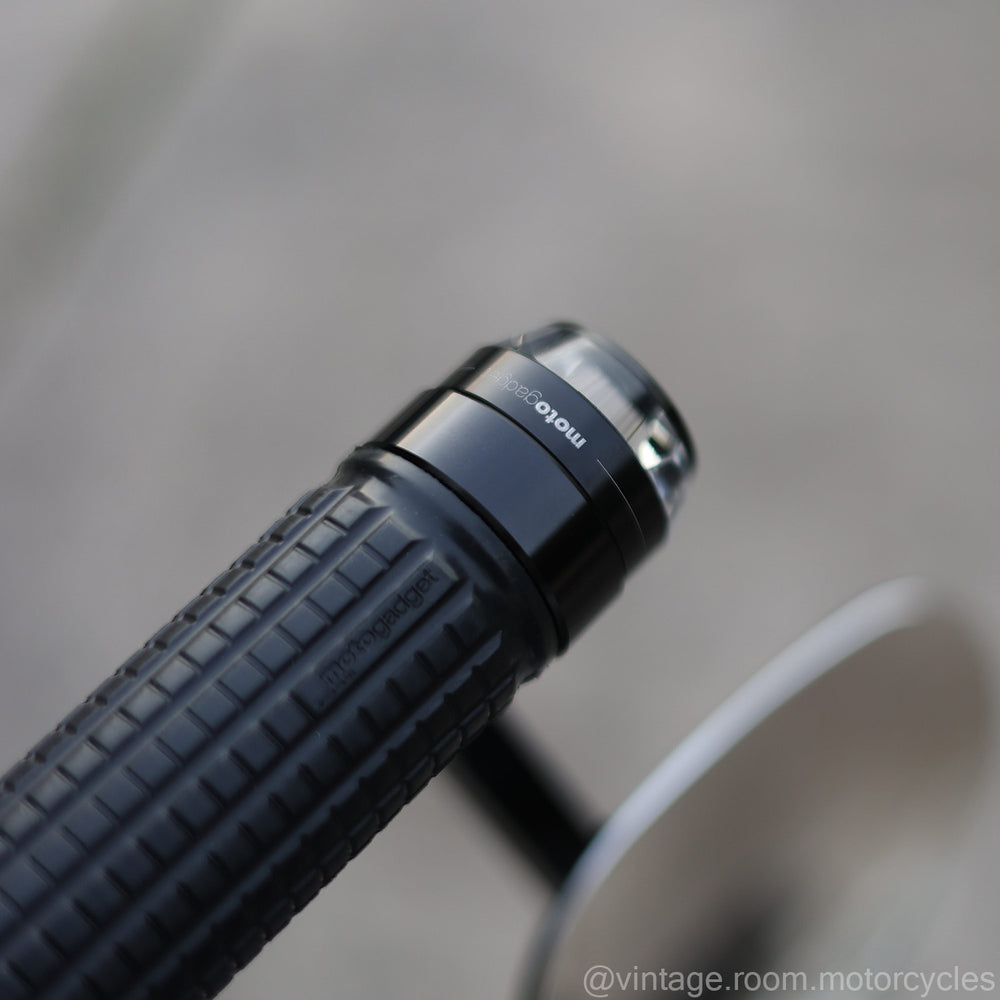

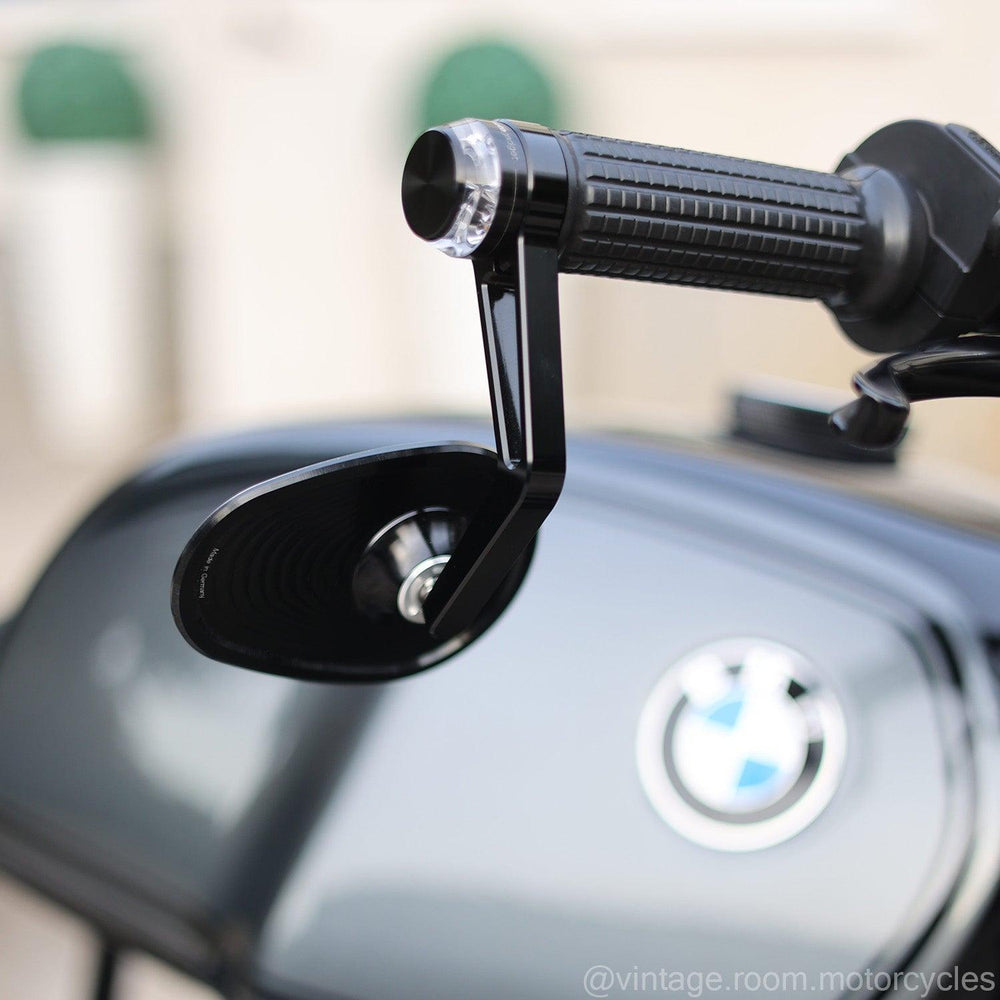

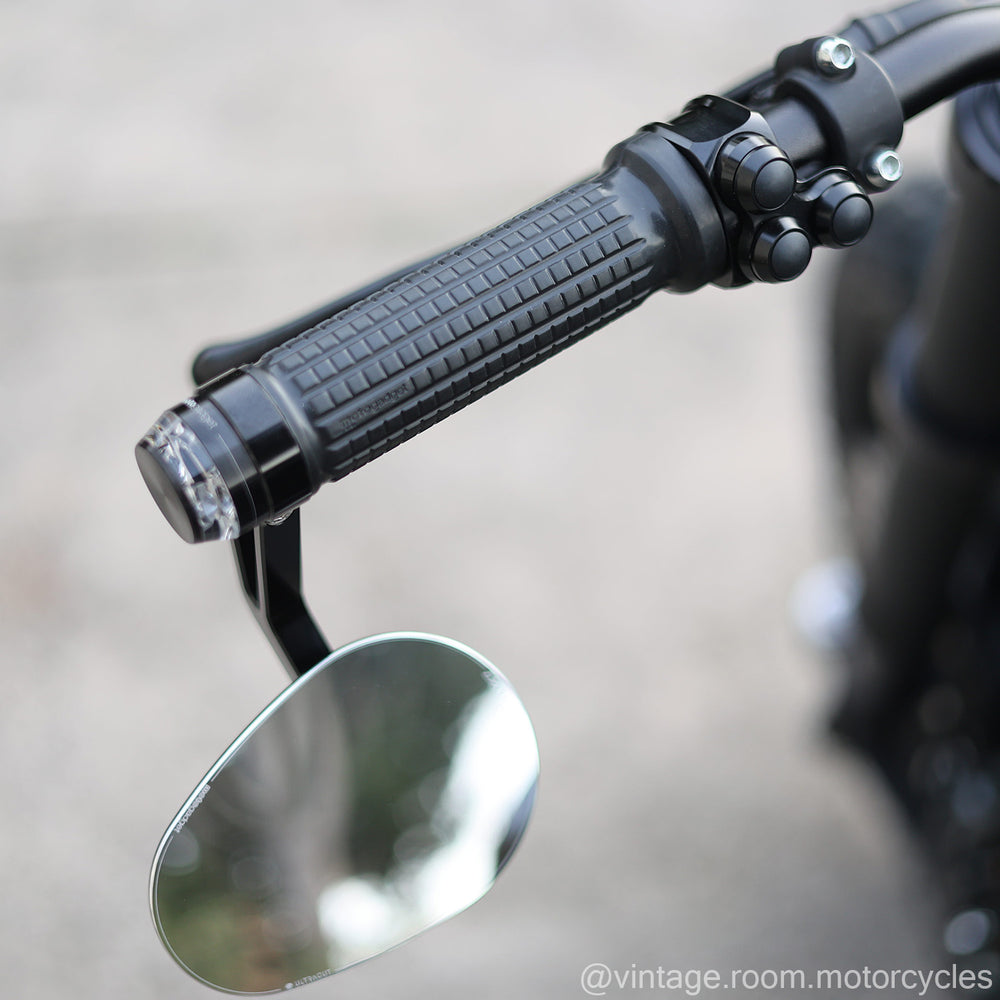

The handlebar end indicator builds very flat and appears through the transparent disc neutral and inconspicuous. Thus, it fits many styles and the most diverse motorcycles. The flasher can be operated like any other LED flasher with load resistors or all our load-independent flasher relays (mo.flash, mo.wave, mo.stop, mo.relay+).

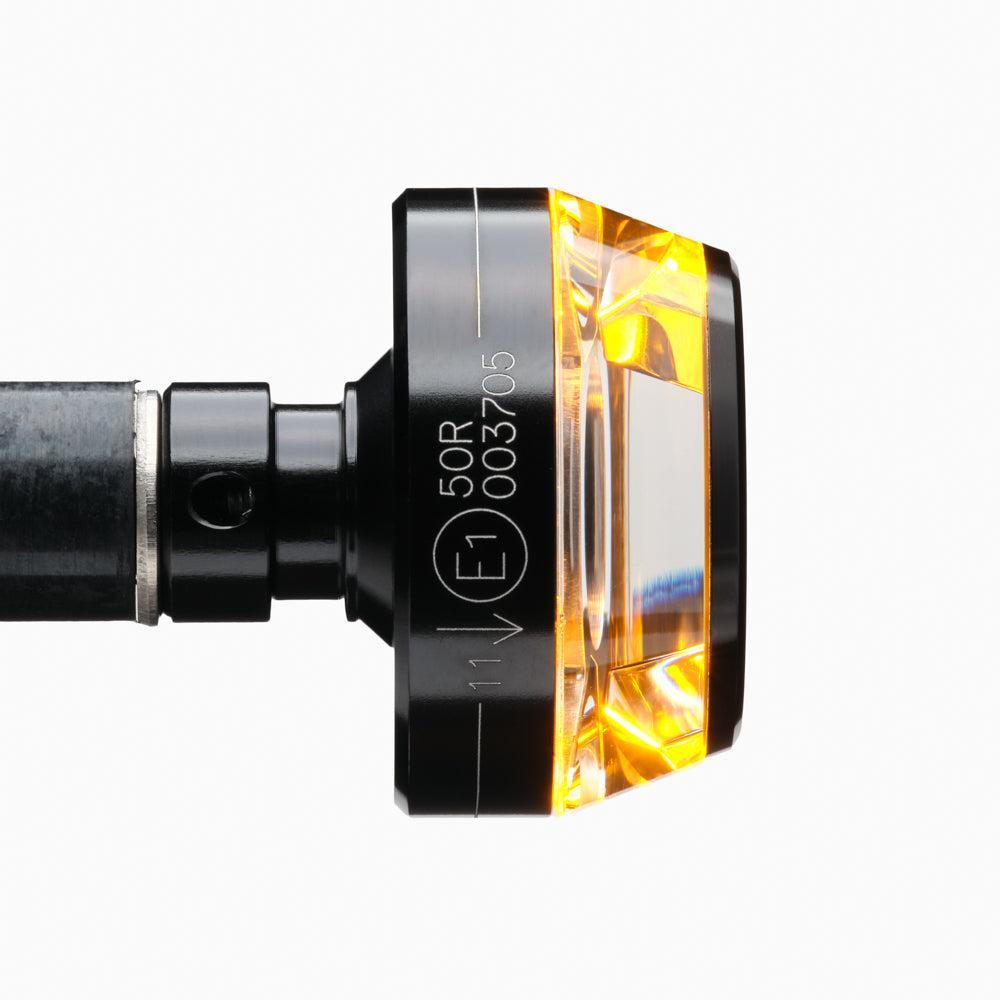

The handlebar end blinker mo.blaze disc presented here has an E-mark
and is ECE-approved as a front blinker.

• Diameter: 35 mm
• Total length: 68 mm (visible 20mm / in the handlebar 48mm)
• Voltage: 12V
• Power: 7W
• Waterproof - degree of protection IP69
• Vibration resistant
• 3 x high-power LEDs (2 to the front, 1 to the rear)
• Service life: 50000h
• Cable length: approx. 1m
• Weight approx. 50g

• 1 x handlebar end indicator mo.blaze disc left or right
• Clamping for steel and aluminum handlebars (22 mm and 1 inch handlebars) with an inner diameter of 14 mm to 21 mm
• Connection cable with 1m length
• 2 x 3M Scotch Lok connectors
• QR code for installation and operating instructions

For use as a pair, please order one left and one right blinker.
